Connecting iSCSI to ESXi Guide

This guide applies to ESXi 4,5 and its supporting versions of VCenter. Unlike SAS connections which are found by simply running an “add storage and refresh” in ESXi, iSCSI needs a little more configuration and by default the adapter is not enabled.

In the simple to follow guide below we create a VSwitch as our iSCSI SAN is not on our standard VMnetwork we then enable the iSCSI adapter in ESXi and point it to our iSCSI SAN by adding the IP address of the SAN to the Dynamic section.

Creating A VSwitch For iSCSI

In this example my iSCSI SAN is on a 192.16.1.x address so we need to create a VMkernel VSwitch so that the ESXI host can see the storage. To do so do the following.

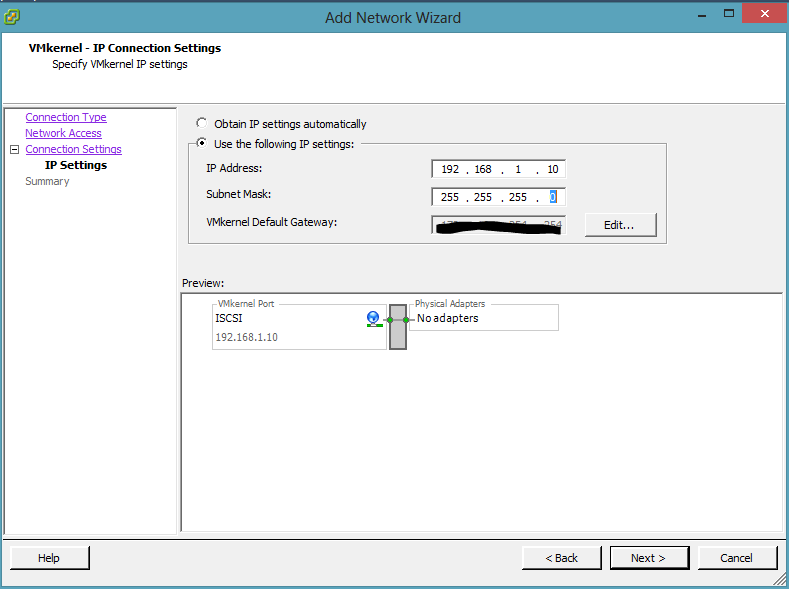

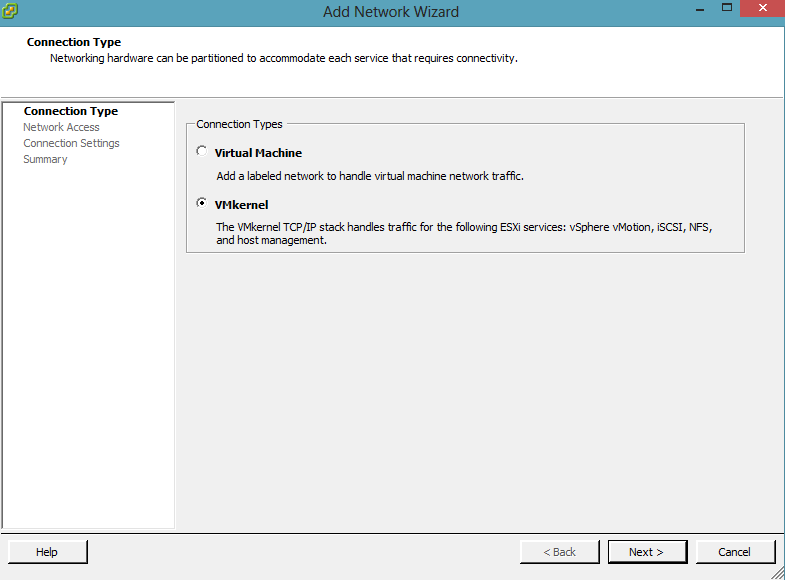

Select Configuration > Networking > Add Networking > Select VMkernel > Select the NIC that is attached to the controller > Label the VSwitch > Assisng a free IP address on the range

As seen here (click to zoom).

Enable iSCSI in VMware ESXi

First log onto you ESXi host from withing VCenter, if you just have a single host log direct onto that ESXi host. Once in then browse to the below.

Host > Configuration > Storage Adapters > Your iSCSI Adapter > Properties

setup iSCSI in vmware

Once you have selected properties you will see the default status is set to disabled.

iSCSI in vmware disabled

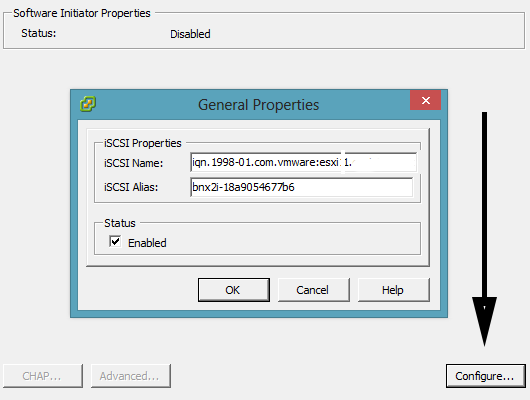

To enable we select configure and then select the enabled tick box as seen below.

vmware iscsi enabled.

Then click OK and select Dynamic Discovery. we now enter the IP address of the controller on our iSCSI SAN, bare in mind that if your SAN has two controller for fail over you will need to add both controller IP addresses.

vmware add iscsi address

To view the storage we have presented we must now refresh our storage display. To do so do the following

Storage > Refresh

You will now see your storage appear and be available for use.

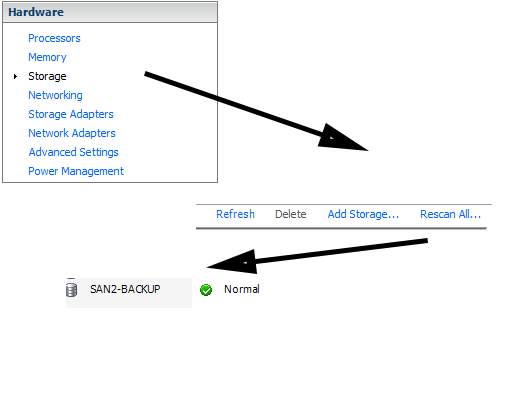

vmware refresh iscsi storage

Tags: esxi, iscsi, sysadmin

Allen White

Allen is a Consultant for ITPS in the North East of England and holds the following accreditations. MCSA, MCSE, MCTS, MCITP, CCA, CCSP, VCP 4,5 and HP ASE, AIS - Network Infrastructure.
